Detectable underground utility tape helps you find hidden pipes and cables. It also helps protect these things under the ground. You use detectable tape to mark where utilities are. This is very helpful with plastic pipes or cables. The tape has a metallic layer inside. This layer works with special locating tools. It makes it easier to find the tape. It also helps you avoid breaking lines when digging. Studies show tracer wire in the tape helps a lot. It makes finding buried utilities more accurate. It also lowers the chance of damaging utilities by accident.
Detectable underground utility tape gives a clear warning. It helps keep workers and equipment safe when digging.
Key Takeaways
- Detectable underground utility tape shows where pipes and cables are hidden. It helps stop people from breaking them when digging. The tape has a metal layer inside. This layer works with special tools. It helps workers find things buried underground. Using detectable tape keeps people safe. It gives clear warnings. It lowers the chance of hitting gas or electric lines. The tape uses colors to show different utility types. This helps workers know what is under the ground. Put the tape about 12 inches above the utility line. This makes sure the warning and detection work well.
Purpose of Detectable Underground Utility Tape
Utility Safety and Damage Prevention
It is important to keep workers safe when digging near utility lines. Detectable underground tape gives a warning before you reach buried utilities. This tape helps you avoid mistakes like hitting gas or electric lines. Using detectable burial tape lowers the risk of hitting utility lines. Utility strikes can hurt people, stop services, and cost a lot to fix.
Detectable underground tape gives both a visual and electronic warning. It helps you find and avoid utility lines when digging. The metallic layer works with detection tools. You can locate the tape even if you cannot see it.
If you do not use detectable burial tape, you may have problems:
- More risk of damaging things underground
- Expensive repairs from damage
- Safety dangers for workers
- Delays in your project
- Possible legal trouble
Detectable burial tape helps stop costly damage during digging. It makes work safer by lowering the chance of hitting live lines. You help prevent injuries and keep your project on track. Detectable underground tape makes construction and maintenance sites safer. It helps you avoid utility strikes that can stop work and cause danger.
Detectable burial tape is one of the best ways to mark utilities. The metallic part lets you find lines exactly. You can map out utility lines better and follow safety rules. Tracer wire in the tape mixes location and safety technology. This makes putting in the tape easy and makes it last longer. You get better protection for every utility line you mark.
Applications for Non-Conductive Utilities
You often need to mark plastic or non-metal utility lines. These lines do not carry electricity, so normal tools cannot find them. Detectable burial tape fixes this problem. The tape has a metallic layer that works with detection equipment. You can find and identify buried lines before digging.
Detectable underground tape is very useful for these utility lines:
- Water lines
- Gas pipelines
- Sewer systems
- Telecommunication cables
- Electrical lines (non-conductive)
You put detectable burial tape above these utilities to help workers find them when digging. The tape lets you detect and avoid utility strikes, even if the line is not metal. This extra protection keeps your team safe and stops costly mistakes.
Using detectable underground tape for non-conductive utilities lowers the chance of damage. You help prevent service problems and keep your project moving. Detectable burial tape gives you a good way to mark and protect every utility line, no matter what it is made of.
Detectable underground tape is important for utility safety. You can trust this tape to help you find and protect every utility line, even ones that are hard to find. By using detectable burial tape, you make your worksite safer and more efficient. You also show you care about safety and quality in every project.
Construction of Detectable Underground Tape
Metallic Layer and Materials
It is important to know how detectable underground tape works. This tape uses both conductive and non-conductive materials. The metallic layer is the key part. Most of the time, this layer is made from aluminum. Aluminum lets special tools find the tape underground. It carries a signal, so you can detect the tape even if it is deep. Polyethylene film covers the metallic layer. This film keeps the tape safe from harm and helps it last longer.
Here is a table that lists the main materials used in detectable underground tape:
| Material Type | Description |
|---|---|
| Conductive Material | Aluminum is often used. It helps make the tape easy to find with different utility location tools. |
| Non-Conductive Material | Polyethylene film makes the tape strong and protects it. This helps the tape work well underground for a long time. |
Some brands, like Tracetape®, use tracer wire with woven polyethylene film. This mix makes the tape easier to find and stronger. Terra Tape® uses strong materials for both types of tape. Detectable underground warning tape often uses LDPE and aluminum for extra strength and clear markings. If you want to learn more about how detectable warning tape is made, you can visit detectable warning tape.
The way detectable tape is built helps you always find buried utilities. The metallic layer works with detection tools, so you get a warning before digging. This helps you avoid mistakes and keeps your team safe.
Durability and Visibility Features
You need tape that can last in hard soil. Detectable underground tape is made to be tough. The tape must stand up to water, acid in the soil, and scratches. Polyethylene film protects the metallic layer from getting damaged. This keeps the warning easy to see and the tape working for many years.
Bright tape is easy to see in the ground. The colors and warning words help workers spot it when digging. Here are some ways bright tape helps keep people safe:
- Bright warning tape gives a clear sign that something is buried.
- The tape shows where lines like gas or electric are, so accidents do not happen.
- Using the right tape helps you follow the rules and stay out of legal trouble.
- The tape helps stop people from hitting gas lines, which could cause explosions.
- It also helps stop people from cutting electric lines, which could cause power loss or hurt someone.
Detectable tape is made to be strong and give a warning. You get tape that stays easy to see and works well, even in bad conditions. The warning on the tape helps keep everyone safe. You can trust this tape to protect your project and your team.
How Detectable Underground Tape Works
Detection with Locating Equipment
It is important to find underground utility lines before digging. Detectable tape has a metallic layer, usually made of aluminum. This layer works with metal detectors and electronic locators. These tools help you find where the tape is buried. You can use them to know exactly where the utility lines are.
Detection equipment sends out signals that hit the metallic layer. The tape bounces back or activates these signals. This makes it easy to see where the utility is. Some systems, like the 3M™ EMS Caution Tape 7900 Series, have special markers. These markers give off signals every eight feet. The 3M™ Dynatel™ Locators 7000X Series can turn on these markers. This helps you find the exact spot, even if it is deep underground.
Here is a table that explains how different detection equipment works with detectable tape:
| Equipment Name | Functionality |
|---|---|
| 3M™ EMS Caution Tape 7900 Series | Marks and locates buried assets, eliminates tracer wire issues, provides locatable signals every eight feet using embedded markers. |
| 3M™ Dynatel™ Locators 7000X Series | Activates the embedded markers in the tape for accurate location of underground utilities. |
You can also use electronic markers. These small devices sit at important spots underground. They do not need batteries and last a long time. They help you mark places for future detection.
How deep you can find the tape depends on its size and the detector. Detectable tape comes in different widths. Each size has a limit for how deep you can bury it. The table below shows how deep metal detectors can find each tape size:
| Tape Size | Maximum Recommended Burial Depth |
|---|---|
| 2″ x 1000′ | 6″ to 18″ |
| 3″ x 1000′ | 6″ to 28″ |
| 6″ x 1000′ | 6″ to 36″ |
Pick the right tape size for your job. Heavy duty tape is best for deeper spots. The metallic layer gives a strong signal. This helps you always find the utility lines underground.
Tip: Always check your detection tools before you start digging. This makes sure the warning system works and you can find the tape at the right depth.
Installation Above Underground Utilities
Putting detectable tape in the right place is very important. You should always put the tape above the utility line, not right on it. This way, you get a warning before you reach the utility when digging.
The best way is to bury the tape about 12 inches (300 mm) above the utility. This works for electric cables, gas lines, water pipes, and fiber optic cables. You can see the usual installation depths in the table below:
| Utility Type | Typical Utility Depth | Recommended Tape Depth (Above Utility) |
|---|---|---|
| Electric power cables | 18–36 inches (450–900 mm) | 12 inches (300 mm) above cable |
| Gas lines | 24–36 inches (600–900 mm) | 12 inches (300 mm) above pipe |
| Water pipes | 24–48 inches (600–1200 mm) | 12 inches (300 mm) above pipe |
| Fiber optic / communication cables | 18–30 inches (450–750 mm) | 12 inches (300 mm) above cable |

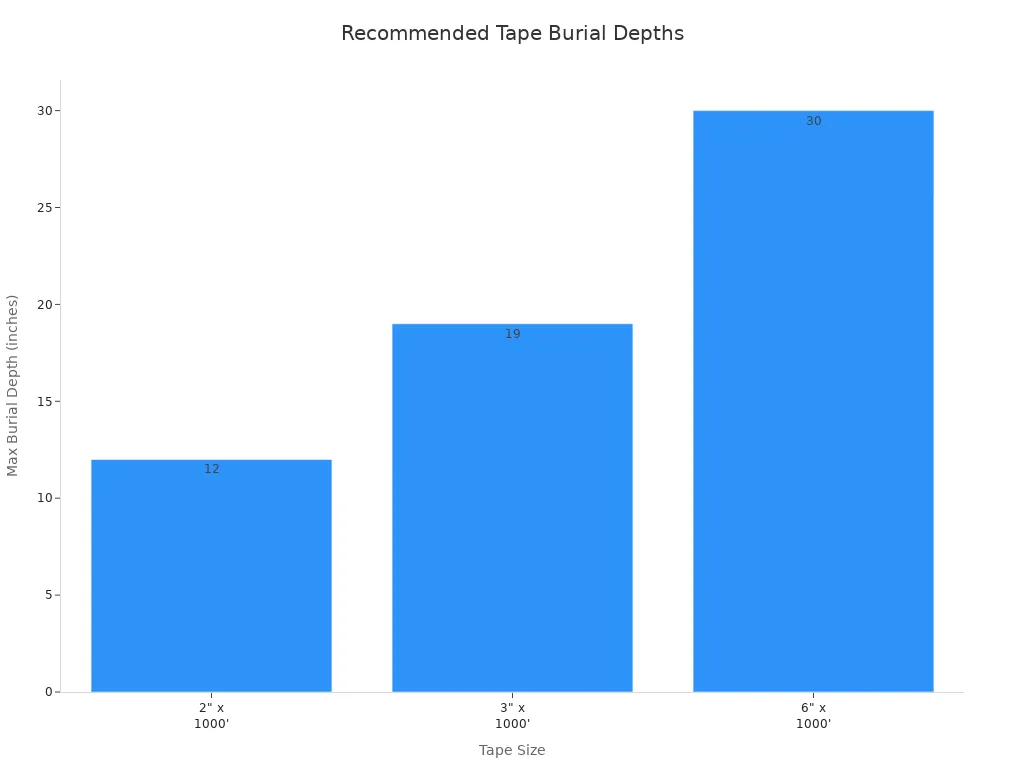

Think about the tape size when you choose how deep to bury it. The chart below shows the best maximum burial depths for each tape size:
For most jobs, keep the tape 12 inches or less below the ground. This makes it easy to find and gives a clear warning before you hit the utility. Standard detectable tape works well for shallow and medium depths. For deeper lines, use heavy duty tape for a strong signal.
Here is a quick guide for how deep to bury each tape size:
| Tape Size | Recommended Maximum Tape Burial Depth |
|---|---|
| 2″ x 1000′ | 10″ to 14″ deep |
| 3″ x 1000′ | 14″ to 24″ deep |
| 6″ x 1000′ | 24″ to 36″ deep |
When you put down detectable tape, make sure it goes all the way above the utility. Do not leave gaps or breaks in the tape. This keeps the warning system complete and helps the tools find the tape every time.
If you need to mark gas lines, you can use detectable gas line tape. This tape is made for gas lines and meets the rules for underground marking.
Note: Always follow local rules and utility company instructions for putting in tape. The right placement and depth help you avoid hitting utility lines and keep your worksite safe.
You can use detectable tape for many kinds of utilities, like water, gas, electric, and communication lines. The tape gives a strong signal and a clear warning. This helps stop damage and keeps your team safe. Using detectable tape makes it easier to find utility lines and avoid mistakes.
Detectable tape is a simple but strong safety tool. It gives you good detection, clear warnings, and is easy to install. If you follow the best steps, you protect your project and follow safety rules.
Detectable vs. Non-Detectable Tape
Key Differences
It is important to know how detectable tape and non-detectable tape are different. Detectable tape has a metallic layer inside. This layer lets special tools find the tape before you dig up utilities. Non-detectable tape does not have metal inside. You cannot find it underground with electronic tools. People use non-detectable tape mostly for warning signs you can see above ground.
Here is a table to help you compare both types:
| Feature | Detectable Tape | Non-Detectable Tape |
|---|---|---|
| Detection Capability | Contains a metallic layer for detection with equipment | Lacks metallic core, cannot be detected underground |
| Intended Use | Ideal for marking underground utilities | Best for above-ground use and visual warnings |
| Cost | Generally more expensive due to metallic materials | More affordable for general-purpose use |
| Regulatory Compliance | Often required by law for safety in excavation | Used where visibility is key, not for detection |
Detectable tape helps you find buried utilities before you dig. Non-detectable tape only warns you if you see it while digging. You should pick detectable tape when you need to mark lines underground that must be found later.
Advantages of Detectable Tape
Detectable tape has many good points for keeping buried utilities safe:
- The metallic layer in detectable tape works with locating tools. You can follow the path of buried utilities very well.
- Detectable tape works even if the utility is plastic or not metal. This means you can find all kinds of buried lines.
- You can trace detectable tape with tools and get close to the right spot, about ±15 cm.
- Detectable tape lasts a long time underground, about 15 to 20 years. The tape stands up to soil, oil, and tough weather.
- You put detectable tape above buried lines. This gives you a warning before you hit the line, so you do not break it.
Tip: Using detectable tape helps you follow safety rules and saves money by stopping mistakes near buried utilities.
Detectable tape keeps your team and your project safe. It makes it easier to find utility lines and lasts a long time. Always use detectable tape when you need to mark and protect buried utilities.
Color Coding for Underground Warning Tape
Standard Utility Colors
It is important to know the color codes before digging. These colors help you see what kind of utility is underground. The American Public Works Association (APWA) made these color rules. Each color means a different utility type. You can use this table to remember what each color shows:
| Color | Utility Type |
|---|---|
| Red | Electric power lines, cables, conduit |
| Orange | Telecommunication lines, alarm or signal lines |
| Yellow | Gas, oil, steam, petroleum |
| Blue | Drinking water lines |
| Green | Sewers and drain lines |
| Purple | Reclaimed water, irrigation, slurry lines |
You will find these colors on detectable warning tape and underground warning tape. The color tells you what is buried below. For example, green tape means sewer lines. Purple tape means reclaimed water or irrigation lines.
Tip: Always look at the color of the underground warning tape before you dig. This helps you avoid mistakes and keeps everyone safe.
Identifying Utility Types
Color-coded underground warning tape helps you know what is underground fast. The tape gives both a visual and electronic warning. When you see a color, you know what kind of line is there. This helps you not hit the wrong utility.
Here is how you can use detectable tape to find and protect underground utilities:
- Detect: Use a locator to find the metallic layer in the detectable tape.
- Locate: Mark the spot where you find the tape.
- Identify: Check the color and the words on the tape. The color follows the APWA code, so you know the utility type.
- Protect: Keep the tape easy to see and in good shape. It warns you even if you do not use a detector.
Using underground warning tape the right way helps stop accidents. You can follow safety rules and avoid expensive damage. The color coding system makes it simple to know what is underground. You can trust detectable warning tape to keep your worksite safe and neat.
Detectable tape is an easy way to help protect all underground utilities. You can use this tape to mark and find utility lines before digging. This helps you follow safety rules and avoid expensive errors. Pick the right tape width for each type of utility. Put the tape halfway between the ground and the utility line. Many building codes say you must use detectable tape for safety. This keeps your team safe and your project running smoothly.
| Requirement | Why It Matters |
|---|---|
| Use detectable tape | Find and protect every utility |
| Follow local codes | Meet safety and legal standards |
| Choose correct tape width | Cover the full width of the utility |
Tip: Always look at the tape’s color and label before digging.
FAQ
What is detectable tape used for?
Detectable tape helps you mark where pipes and cables are underground. It lets you find these utilities before you dig. The tape gives a warning to help stop accidents at work.
How does detectable tape help with safety?
Detectable tape gives a warning you can see and find with tools. Using this tape lowers the chance of hitting buried lines. It keeps your team safe and helps you avoid expensive repairs.
Can you use detectable tape for all types of utilities?
You can use detectable tape for many kinds of utility lines. It works for water, gas, electric, and telecommunication lines. The tape helps you find both metal and plastic pipes.
How deep should you install detectable tape?
Put detectable tape about 12 inches above the utility line. This depth gives a clear warning before you reach the utility. Always check local rules to make sure you do it right.
What makes detectable tape different from regular tape?
Detectable tape has a metallic layer inside it. This layer lets you find the tape with special tools. Regular tape does not have metal, so you cannot detect it underground.
